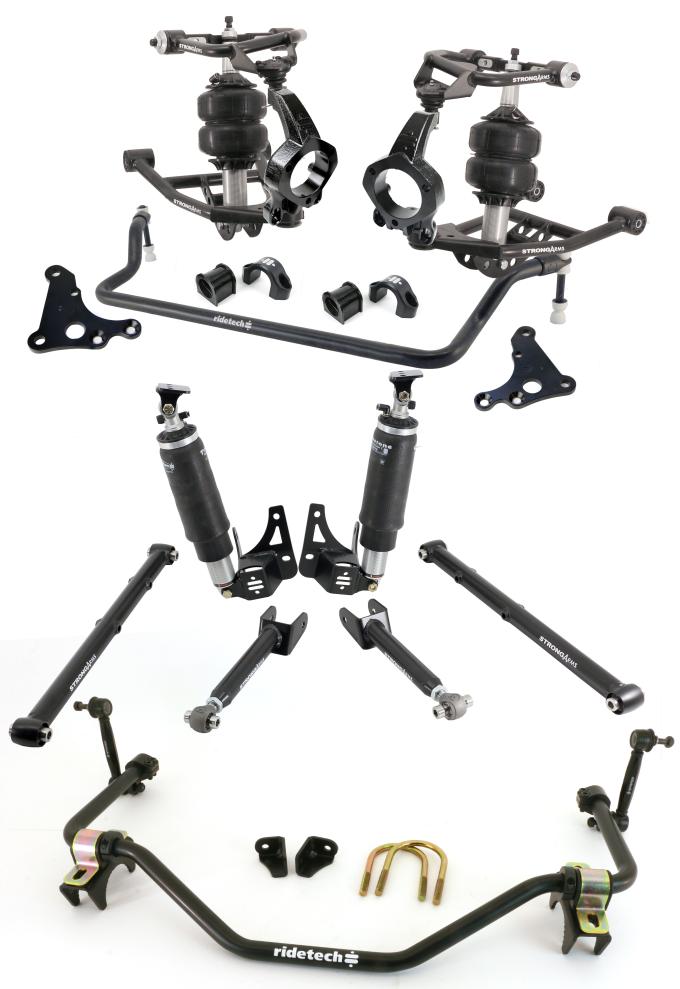

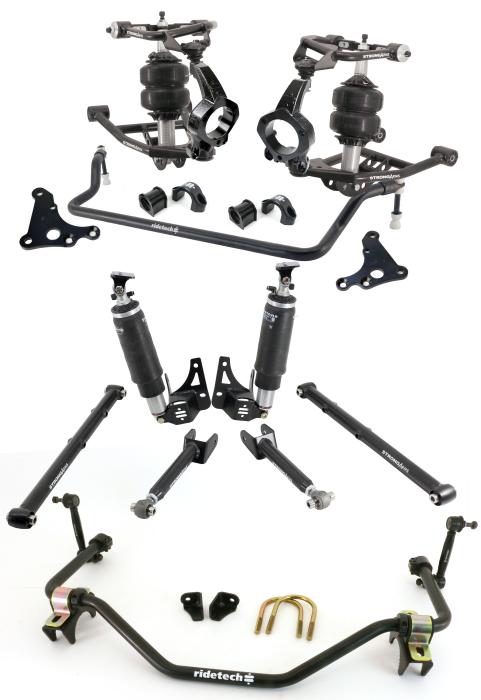

This Air Suspension System is specifically designed for the 1968-1972 GM A-Body Platform and includes everything needed to create modern drivability with an ultra-low show stance. The package contains front upper and lower control arms, tall spindles, front & rear sway bars, rear StrongArms and 4 HQ Series Shockwaves. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. 1968-1972 GM A-Body includes Chevelle, Cutlass, El Camino, F85, Grand Prix (69-72), GS, GTO, LeMans, Malibu, Monte Carlo, Skylark, Special, Sportwagon, Tempest and Vista Cruiser.
Features:

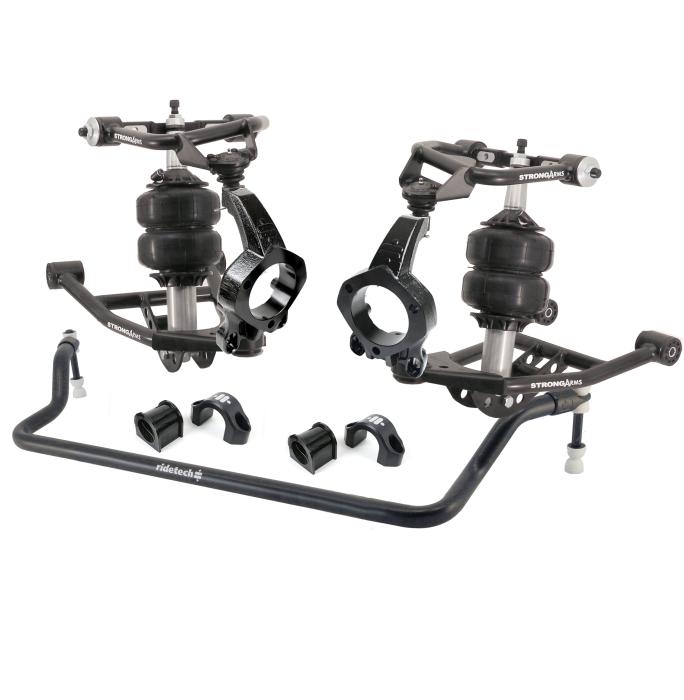

- Tall “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel. Compatible with all brake kits designed to fit the stock disc brake spindle.

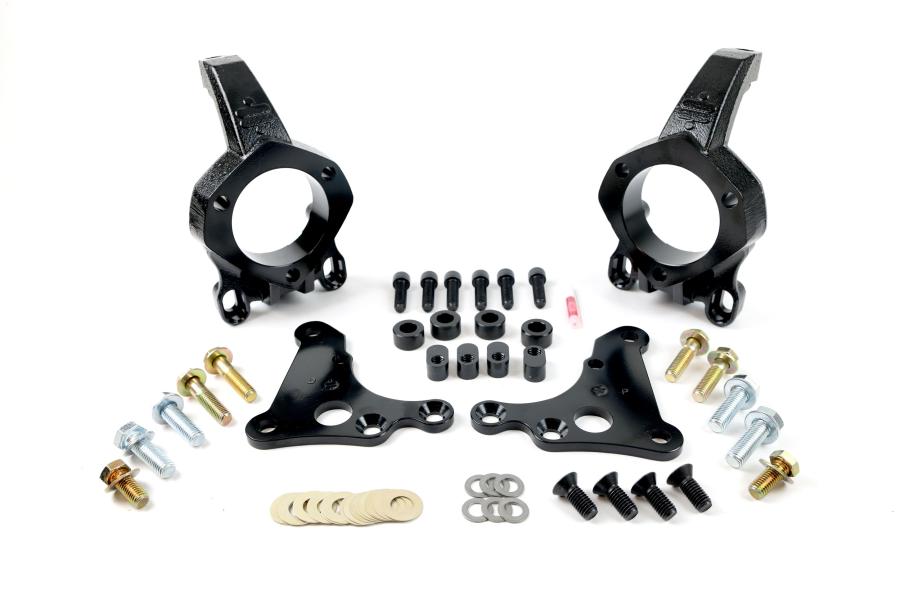

- Optional “Hub” Spindlesoffer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Corvette hubs and brakes. Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE and aftermarket (caliper brackets included). Minimum 17″ wheels.

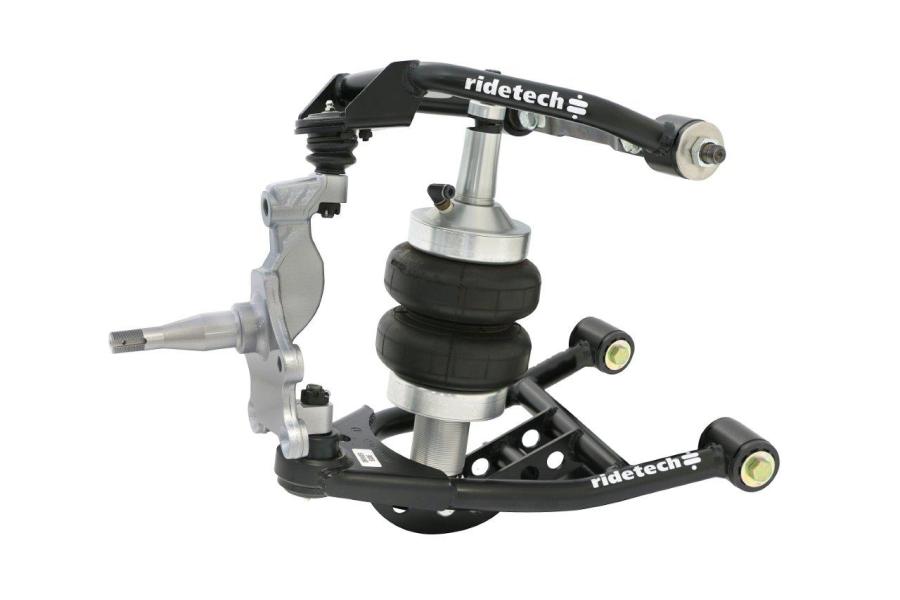

- Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Brackets are included with the rear coilovers for easy attachment to the frame and to the 10/12 bolt rearend or Currie 9″. Brackets for a Moser rearend are also available. Updated lower brackets now feature two positions on the lower shock mount to offer more ride height adjustment and 4 holes for the lower trailing arm to adjust the anti-squat (50%-160%). Brackets for a Moser rearend are also available.
- Front MucleBar helps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms. An adjustable rate Rear MuscleBar is also included.
- Rear StrongArms provide added strength to help get the power to the pavement and utilize R-Joint Technology to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.
*** Control system not included. To complete this Air Suspension system please choose from one of our Compressor Systems.
About Ridetech
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Buick |
Skylark |
1968 - 1972 |
| Buick |
Special |
1968 - 1969 |
| Buick |
Sportwagon |
1968 - 1972 |
| Chevrolet |
Chevelle |
1968 - 1972 |
| Chevrolet |
El Camino |
1968 - 1972 |
| Oldsmobile |
Cutlass |
1968 - 1972 |
| Oldsmobile |
F85 |
1968 - 1972 |
| Oldsmobile |
Vista Cruiser |
1968 - 1972 |
| Pontiac |
GTO |
1968 - 1972 |
| Pontiac |
Grand Prix |
1969 - 1972 |
| Pontiac |
LeMans |
1968 - 1972 |
| Pontiac |
Tempest |
1968 - 1970 |
