MSD Power Grid Dual NTK Wide Band O2 Module 7766

MSD Power Grid Dual NTK Wide Band O2 Module 7766
MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766MSD Power Grid Dual NTK Wide Band O2 Module 7766
$1,216.99 ea
NEWARRIVING SOONEstimated Ship Date 01/14/2025 (If Ordered Today)13 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/28/2024
Model: 4017429
STANDARD
DELIVERY
STORE PICKUP
[More Info]

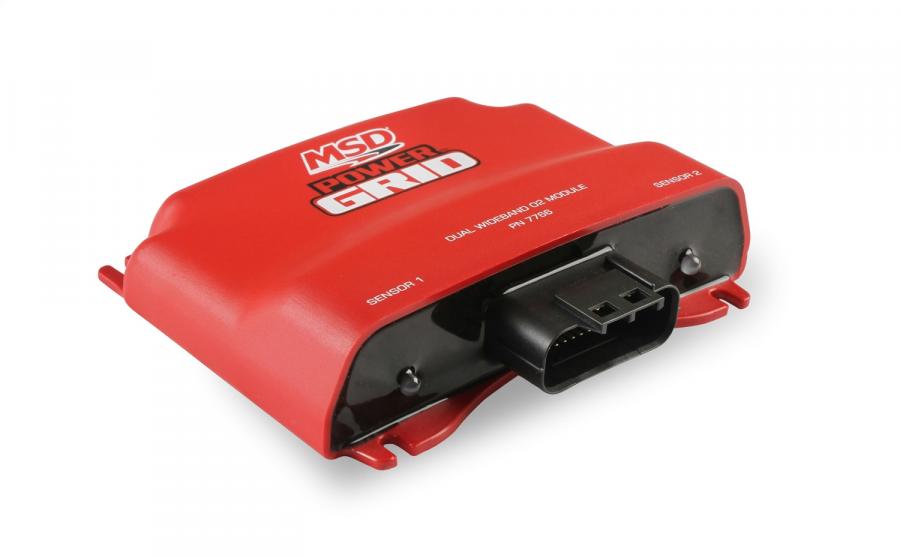

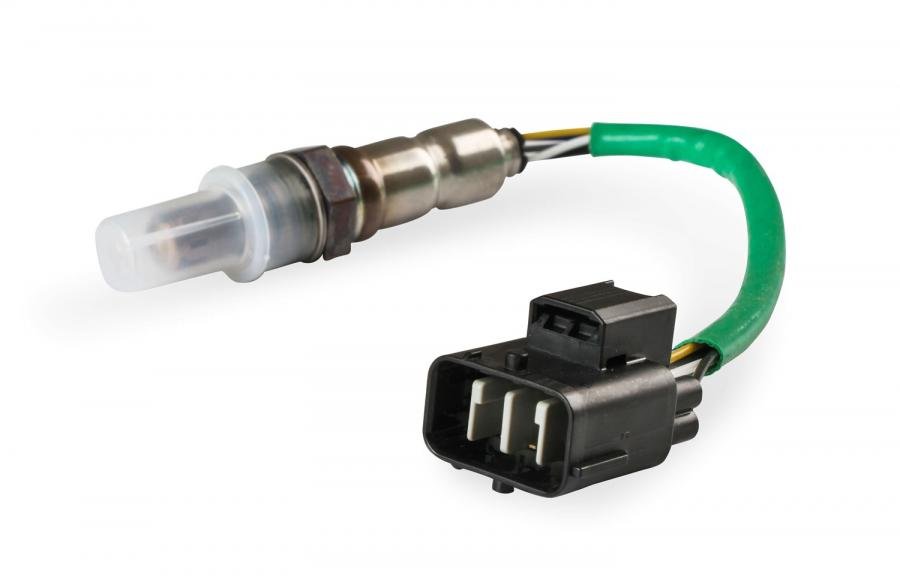

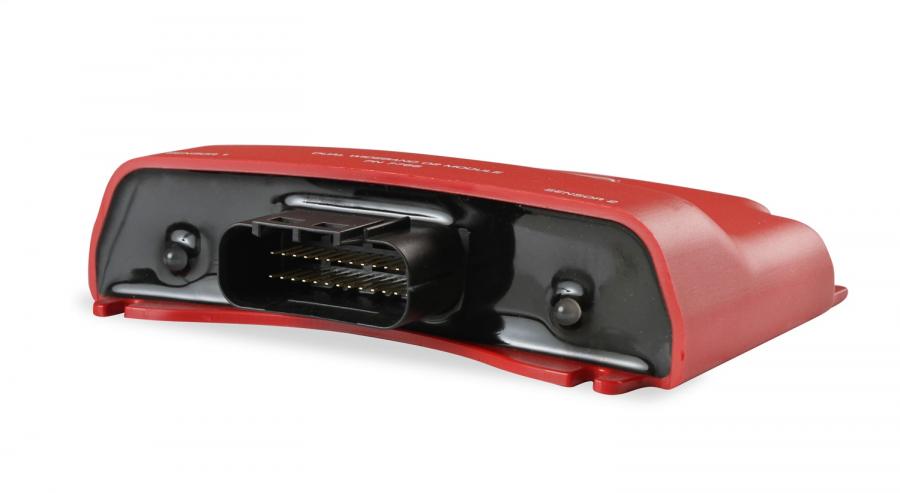

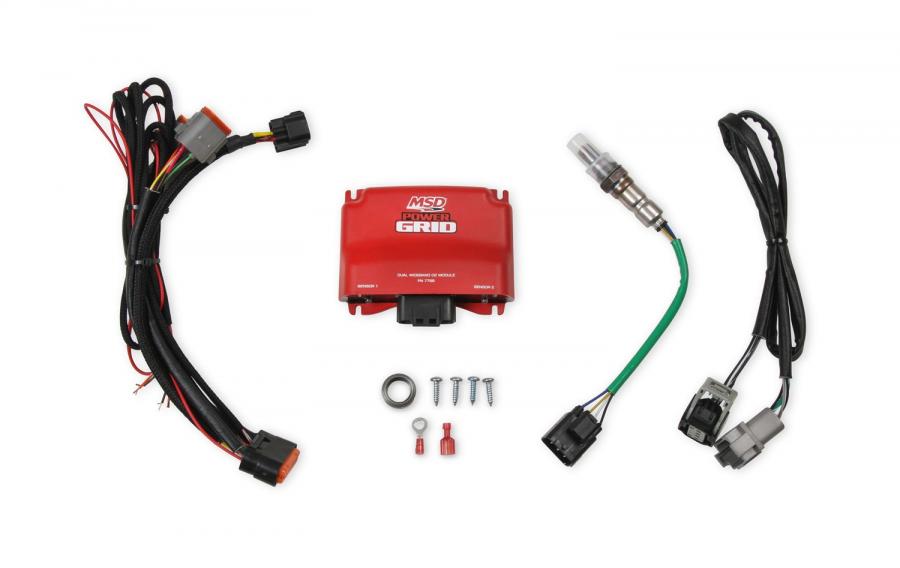

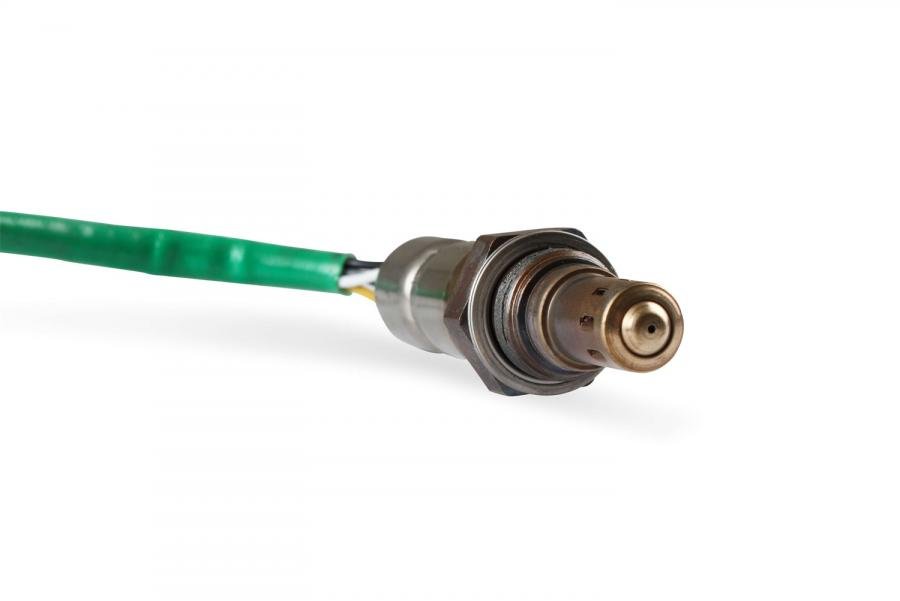

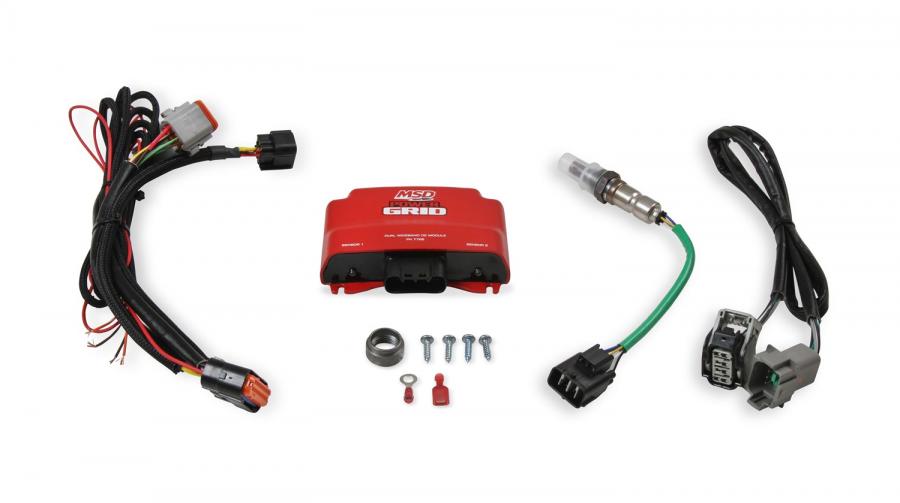

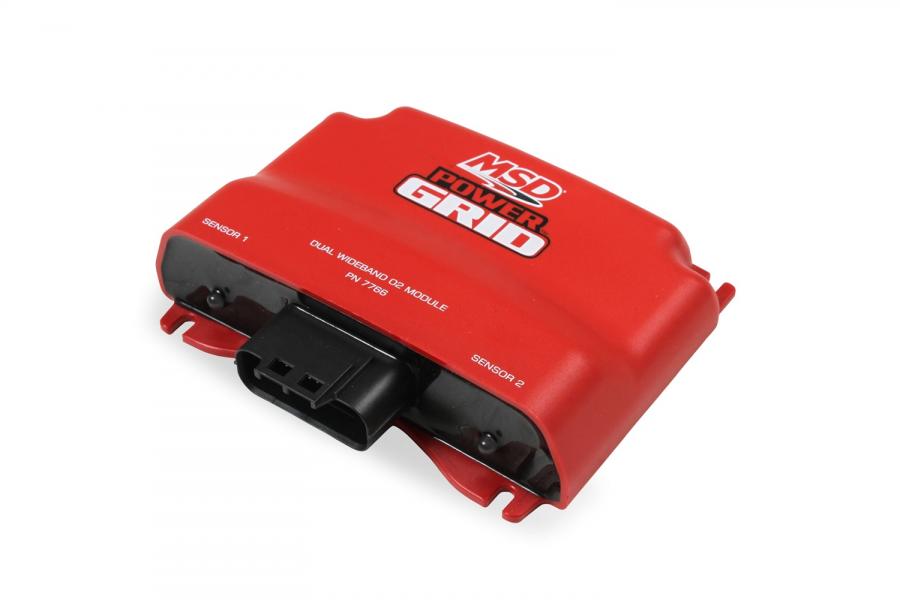

The MSD Power Grid Dual NTK Wide Band O2 Module is a dual channel air-fuel ratio (AFR) system designed to interface with the Power Grid (PN 7730) to monitor and record the AFR of internal combustion engines. The Dual Wide-Band O2 sensor module is capable of measuring AFR as low as λ = 0.5 (7.35:1 Gasoline AFR equivalent). The AFR range is configurable using the MSDView software in conjunction with the Power Grid Controller (PN 7730). Excellent range of the NTK sensor gives this unit the ability to accurately monitor AFR's even on alcohol cars. The MSD Wide-Band O2 Sensor module also provides a 0.5-4.5 VDC analog output proportional to the AFR. This analog output can be sent to a gauge or a data acquisition system. A dual-color LED provides the system status at a glance. To provide accurate backpressure compensated AFR readings on turbocharged applications, the addition of an Exhaust Pressure Module, part number 7767, is required.
Features:
  • Plug and Play Power Grid module
  • Works seamlessly with additional MSD Wide-Band O2 Sensor Modules
  • No setup or calibration required (Free Air Calibration is optional for added precision)
  • Can be expanded to operate with a second sensor MSD PN 2268
  • Fully potted and sealed unit with Automotive-Grade connectors
  • 0.5-4.5V Analog Output Voltage for a gauge or data acquisition
  • LEDs to monitor system operation and health
  • High speed data acquisition when used with the Power Grid Controller (PN 7730)
  • Back Pressure Compensated AFR's when used with the optional Exhaust Pressure module
MSD Power Grid (PN 7730) and Power Grid Hub (PN 7740) are required.
Installation Notes:
MSD Power Grid (PN 7730) and Power Grid Hub (PN 7740) are required.

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
frm35173_7766_0619.pdf2.61MB

Videos:

Specifications:

Emission Code 4
Part Type Oxygen Sensor Module
Product Type Module
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 1 Year Warranty
