MSD Crank Trigger Kit, Flying Magnet, Hall-Effect, LS Gen III/IV, 8.00 In. 8623-MSD

Name: MSD Crank Trigger Kit, Flying Magnet, Hall-Effect, LS Gen III/IV, 8.00 In. 8623-MSD
Brand: MSD
SKU: 4953376
Price: 1090.99 CAD
Availability: InStock

$1,090.99 ea

NEWARRIVING SOONEstimated Ship Date 01/07/2025 (If Ordered Today)14 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/21/2024

Model: 4953376

0 reviewsWrite a Review Add to Wish List

CALL US
877.454.7792

Description Downloads Specifications Reviews (0) Product Q&A Related Products

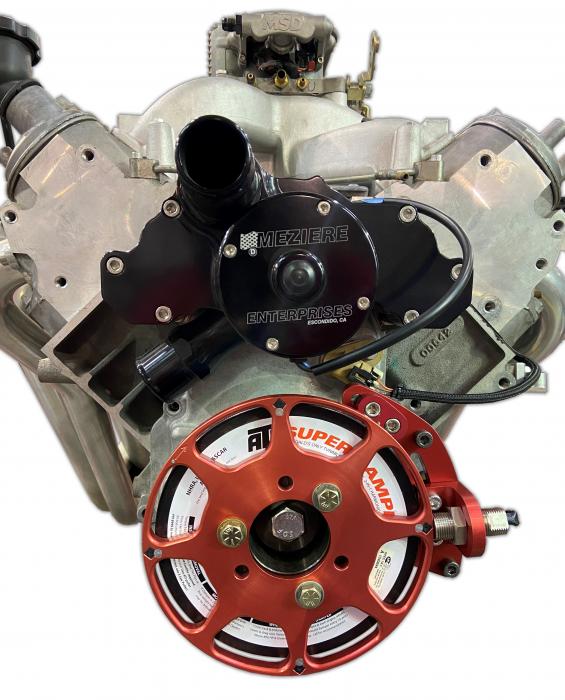

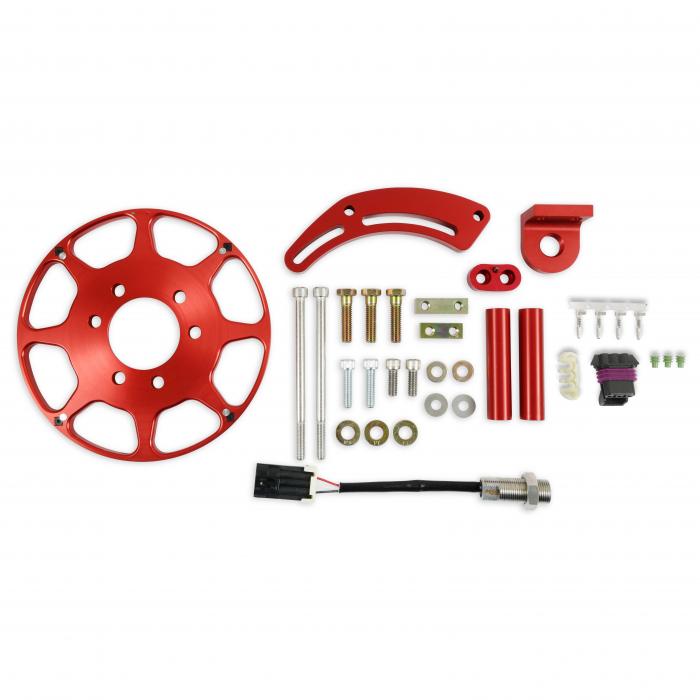

Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high-performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system/ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high-quality timing pointer and the use of a direct bolt-on, degreed balancer (ATI 917302 or 918852), you'll be able to adjust timing in the precise increments required for your LS Engine. On some vehicles, the MSD Crank Trigger Kit may require slight modifications to accommodate special engine plates, pulley systems, etc. This kit is designed to be used with the ATI Harmonic Balancer 917302 or 918852 but is also compatible with 917264 and 917242. Also compatible with Meziere water pump WP333 and LSX Blocks.

Features:

Most accurate way to trigger your electronic fuel injection (EFI)

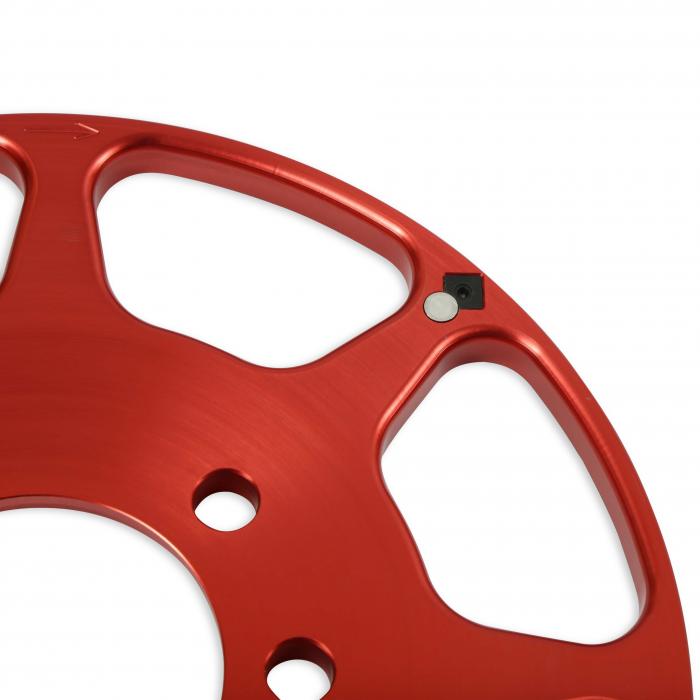

Powerful magnets embedded in a 3/8” thick billet 6061-T6 aluminum trigger wheel
3-wire Hall-Effect Sensor that is not easily susceptible to EMI/RFI Interference

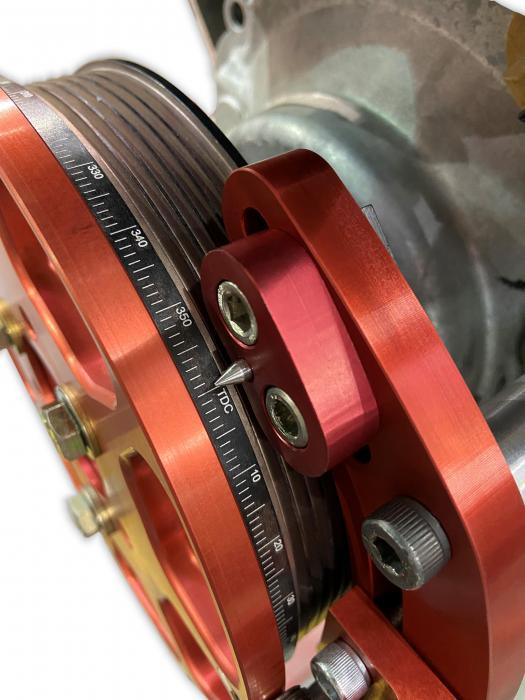

Allows precise indexing by utilizing the 10 degree range on included timing pointer
Easy to install much like traditional MSD Crank Trigger Kits (use with ATI Balancer 917302 or 918852 but is also compatible with 917264 and 917242)

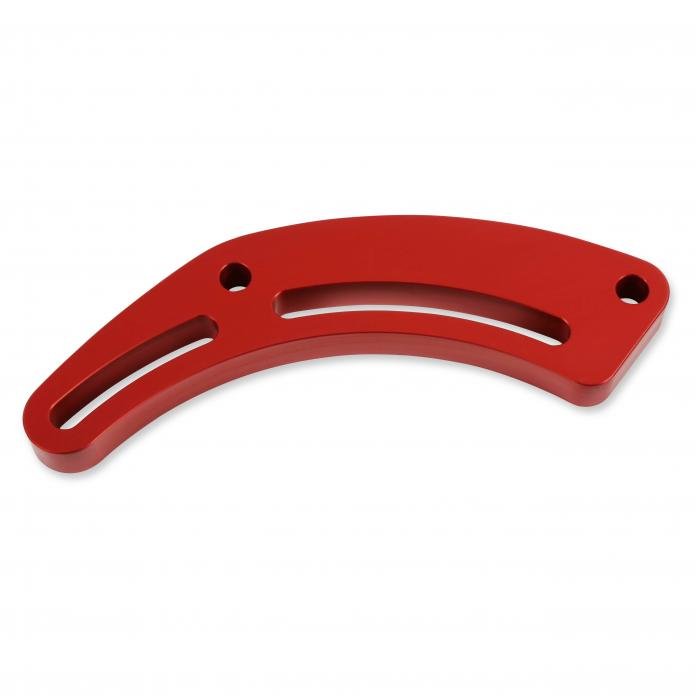

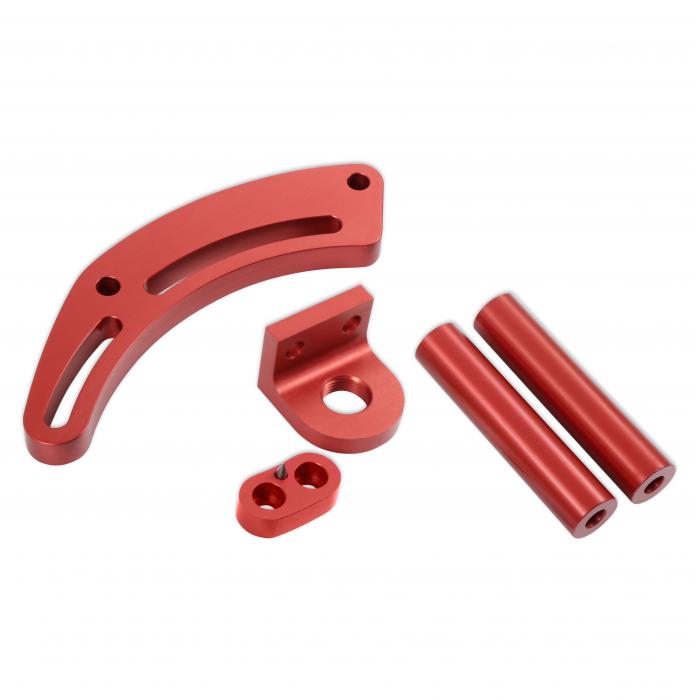

Rigid mounting that will not flex and cause timing fluctuation

On some vehicles, the MSD Crank Trigger Kit may require slight modifications. This kit is designed to be used with the ATI Harmonic Balancer 917302 or 918852 but is also compatible with 917264 and 917242. This kit is also compatible with Meziere water pump WP333 and LSX Blocks.

Installation Notes:

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name	File Size
frm35578.pdf	456.98KB
frm36245.pdf	554.48KB

Specifications:

Color	Red
Diameter	8 in.
Emission Code	4
Engine	GM Small Block Gen III/IV (LS Based)
Make	Chevrolet
Operating Voltage	5-20 Volts
Part Type	Ignition Crank Trigger Kit
Product Type	Crank Trigger Kit
Proposition 65	www.P65Warnings.ca.gov
Sensor Type	Hall Effect
Warranty	Limited 1 Year Warranty
