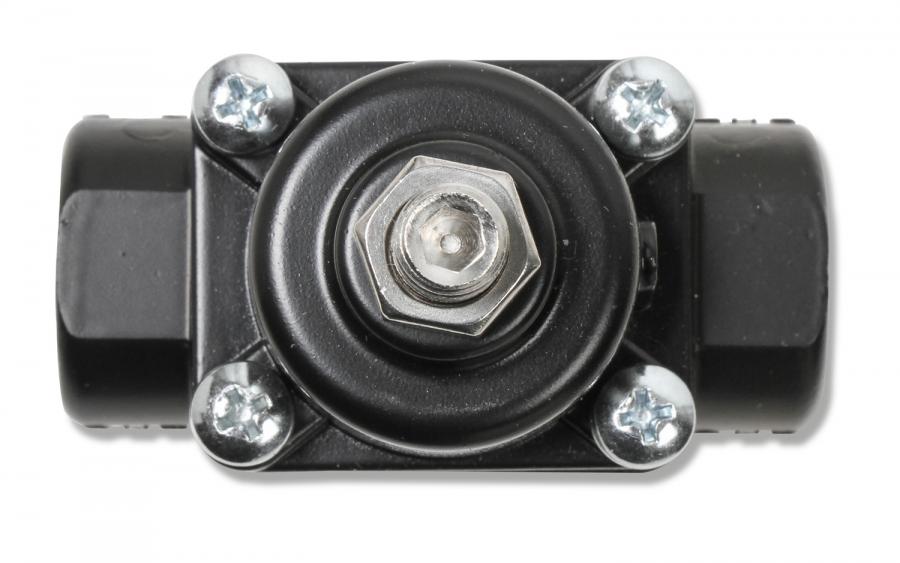

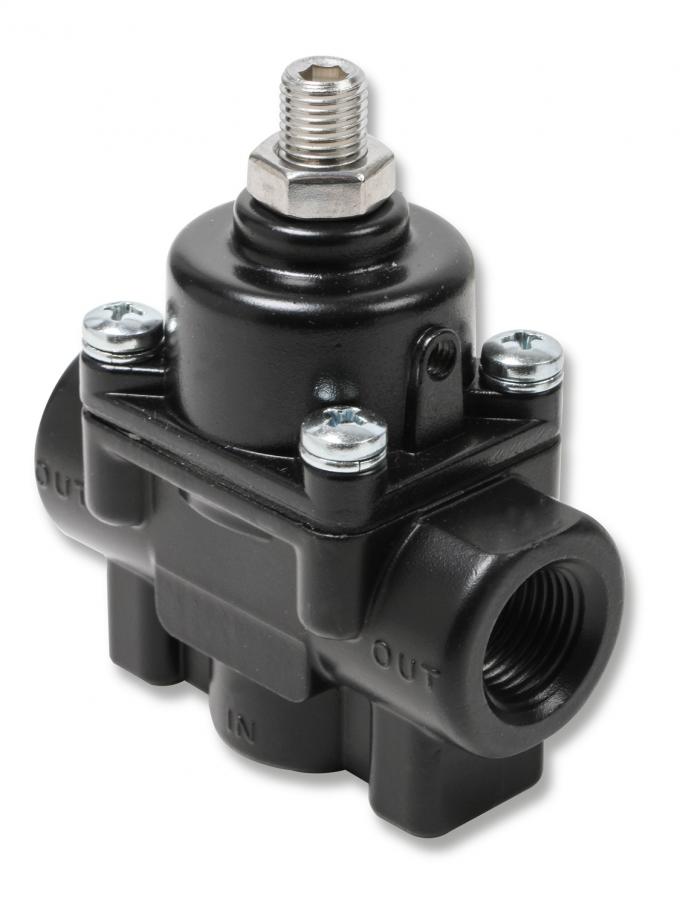

Earl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERL

Earl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERL
Earl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERLEarl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERLEarl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERLEarl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERLEarl's Adjustable Fuel Pressure Regulator, Carbureted, Black, 1-4 PSI 12850ERL
$69.99 ea
NEWOUT OF STOCK
Model: 4000207
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Earl's fuel pressure regulators are designed to adjust for fuel pressure requirements of various carburetors. EARL'S,
Features:

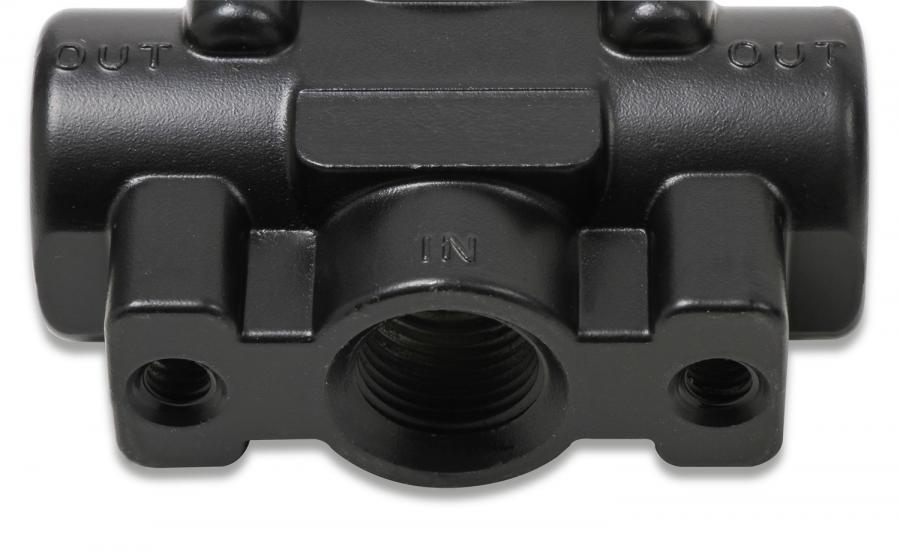

  • 3/8" NPT ports

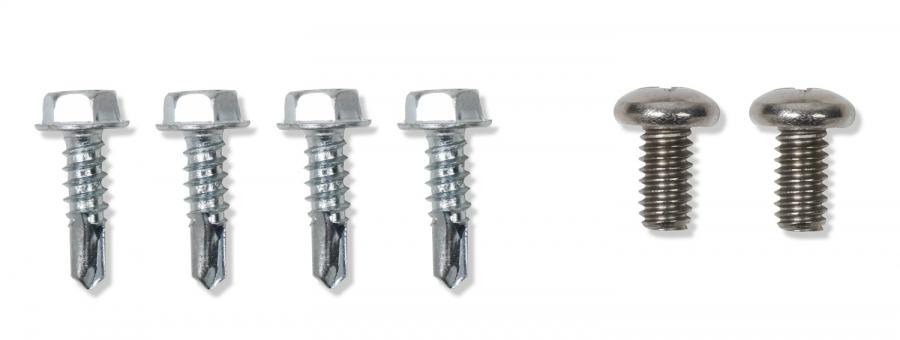

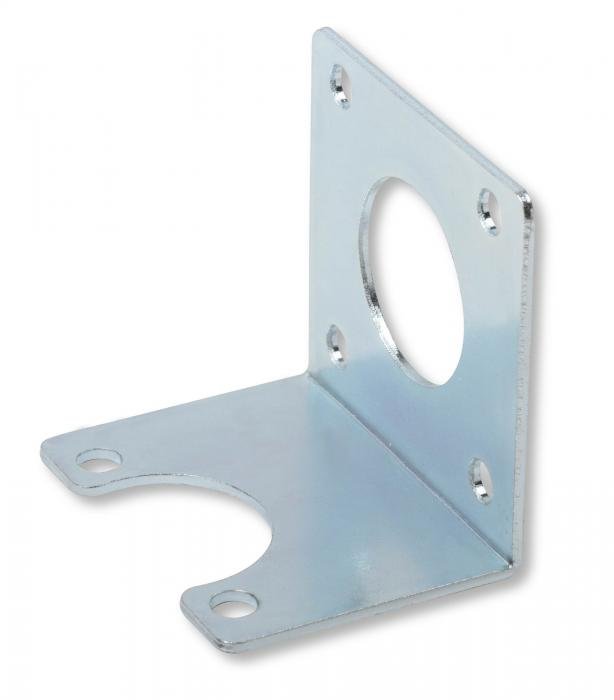

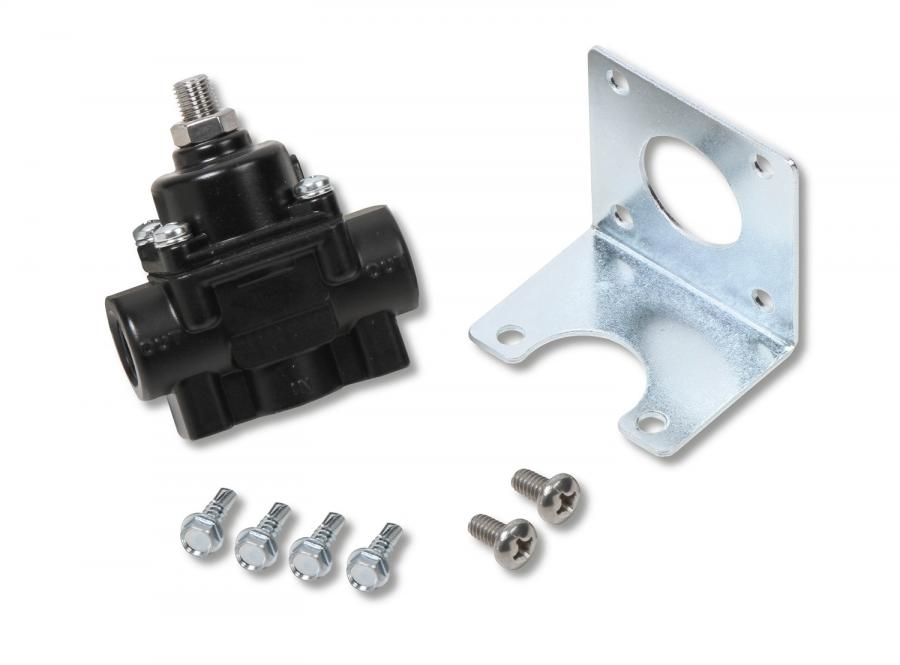

  • Includes Mounting Bracket & Hardware
  • Low Pressure (1-4 psi)
  • Black Finish
  • Not Alcohol Compatible
  • Ideal for Use w/ Weber, Mikuni, SK, OER & Delorto Carbs that Require Lower PSI Rating of 1-4 PSI.
  • Optional port w/ 10-32 Thread for manifold Boost Reference 1:1
Note: This regulator has a vent on the side that can be used as an optional boost reference (don't plug this hole since it is a vent when not using the boost reference feature). The thread size on this port is 10-32.
Installation Notes:
Note: This regulator has a vent on the side that can be used as an optional boost reference (don't plug this hole since it is a vent when not using the boost reference feature). The thread size on this port is 10-32.

Downloads:

Download Name File Size
199r11155.pdf628.92KB

Videos:

Specifications:

Color Black
Emission Code 5
Fuel System Carbureted
Fuel System Type Gasoline
Fuel Type Gasoline
Inlet Size 3/8 inch NPT
Outlet Size 3/8 inch NPT
Part Type Fuel Pressure Regulator
Pressure Range 1-4 PSI
Product Type Fuel Pressure Regulator
Proposition 65 www.P65Warnings.ca.gov
Style Non-Return
Warranty Limited 90 Day
