Wilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-R

Wilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-R
Wilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-12837-R
$2,081.99 ea
NEWARRIVING SOONEstimated Ship Date 01/08/2025 (If Ordered Today)50 Available from WILWOOD ENGINEERING as of 12/24/2024
Model: 3921491
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Fitment Notes

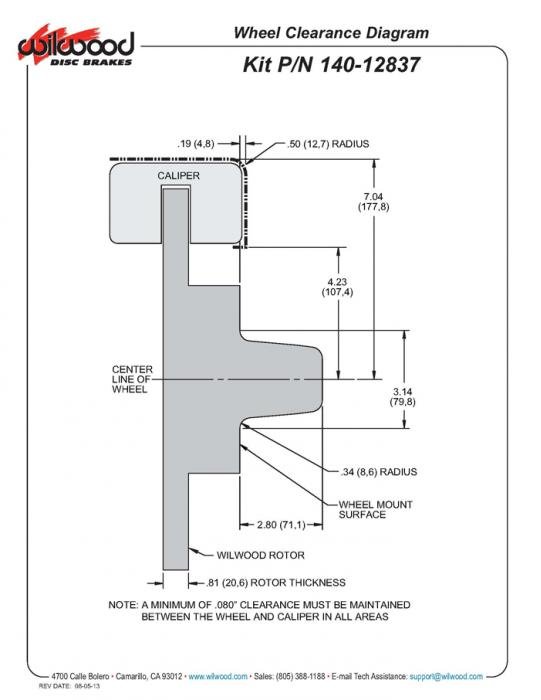

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds946.pdf524.66KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet El Camino 1979 - 1987 KIT,FRONT,G-BODY,80-87,DP6,FORGED HUB 12.19 VENTED,RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Chevrolet Malibu 1979 - 1983 KIT,FRONT,G-BODY,80-87,DP6,FORGED HUB 12.19 VENTED,RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Oldsmobile Cutlass Base 1979 - 1981 KIT,FRONT,G-BODY,80-87,DP6,FORGED HUB 12.19 VENTED,RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Pontiac Grand Prix 1979 - 1987 KIT,FRONT,G-BODY,80-87,DP6,FORGED HUB 12.19 VENTED,RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Pontiac LeMans 1979 - 1981 KIT,FRONT,G-BODY,80-87,DP6,FORGED HUB 12.19 VENTED,RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-5843
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-5843
Style Plain Face
Surface Finish Plain
Type Ultralite HP 32
Vane Count 32 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-10535
Replacement Piston 1 200-7520
Replacement Piston 2 200-7518
Replacement Piston 3 200-7518
Wear Plate - Left Hand 300-9707
Wear Plate - Right Hand 300-9707
Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Finish Color Bare
Hub - Part No 270-11043
Material Aluminum
Mount Style Adapter
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Vented Rotor Offset
Kit Components & Specs / Calipers
Brake Pad Area (In²) 7.3
Brake Pad Plate 6712
Brake Pad Volume (In³) 2.4
Finish Color Red Powder Coat
Left Hand - Part No 120-13429-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Piston Area (In²) 5.06
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-13428-RD
Type Dynapro 6
(Increase / Decrease Track Width)
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rotor Diameter 12.19
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7056
Kit Summary
OE Hub Offset .00
